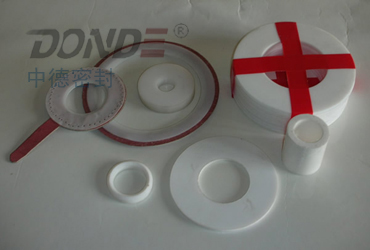

PTFE Gasket，Polytetrafluoroethylene Gasket
Item No.:ZD-G1600
Description:
ZD-G1600
is made by cutting PTFE stick, pipe and sheet into flat shape PTFE
gasket, v shape PTFE gasket or valve annulus PTFE gasket.PTFE gasket has
100% PTFE structure.It can bear the most bitter chemical medium, and
PTFE gasket has good anti-creeping performance.PTFE gasket is a
replacement of asbestos,and it is anti-creeping, anti-cold-flow,
anti-low-temerature.PTFE gasket has no pollution and is easy to install
and replace. under small pre-stress force,it can bear great internal
pressure even in a environment of changing pressure. It is the
best suit the condition with rough and fragile flange and
alternately-changing temperature.
Main Specification：
|
Pressure |
=<10MPa |
|
Temperature |
-180℃～260℃ |
|
PH Range |
0-14 |
|
Density |
2.1-2.3g/cm3 |
|
Size |
OD=<2000mm(special size can be made as
request) |
Modified
PTFE Gasket
Item No.:ZD-G1610
Description:As
we know,PTFE gasket is anti-creeping, anti-cold-flow, anti-low-temerature
and PTFE gasket has no pollution. If we add some more useful element
into the PTFE,the compression resistance and high temperature resistance
will be more perfect.For example,can add some fibreglass,graphite,bronze
to improve the character of pure PTFE gasket.We have PTFE gasket
reinforced with glass fibre,graphite PTFE gasket,reformative PTFE
gasket,PTFE bronze gasket,ect.
PTFE Graphite-filled Gasket:PTFE(teflon)
graphite-filled is synthetic material made of PTFE and grapphite.It has
perfect compressibility,recovery and sealing capability.Compared with
traditional PTFE,it improve the low-flow and creep properties.It
is more durable than normal PTFE gasket and extend the maintenance
period of flange.So PTFE(teflon) graphite is economical choice.
PTFE Glass-filled Gasket:It
is
It
Main Specification：
|
Pressure) |
=<16MPa |
|
Temperature |
-180℃-260℃ |
|
PH |
0-14 |
|
Density |
2.1-2.3g/cm3 |
|
Size |
OD=<2000mm(special size is made as request) |
Consulted Dimension:
|
No. |
Type |
Standard |
Type |
Standard |
|
1 |
RF 10A |
Φ53×Φ18×3t |
FF 10A |
Φ90×Φ18×3t |
|
2 |
RF 15A |
Φ58×Φ22×3t |
FF 15A |
Φ95×Φ22×3t |
|
3 |
RF 20A |
Φ63×Φ28×3t |
FF 20A |
Φ100×Φ28×3t
|
|
4 |
RF 25A |
Φ74×Φ35×3t |
FF 25A |
Φ125×Φ35×3t
|
|
5 |
RF 32A |
Φ84×Φ43×3t |
FF 32A |
Φ135×Φ43×3t
|
|
6 |
RF 40A |
Φ89×Φ49×3t |
FF 40A |
Φ140×Φ49×3t
|
|
7 |
RF 50A |
Φ104×Φ61×3t
|
FF 50A |
Φ155×Φ61×3t
|
|
8 |
RF 65A |
Φ124×Φ77×3t
|
FF 65A |
Φ175×Φ77×3t
|
|
9 |
RF 80A |
Φ134×Φ90×3t
|
FF 80A |
Φ185×Φ90×3t
|
|
10 |
RF 90A |
Φ144×Φ102×3t
|
FF 90A |
Φ195×Φ102×3t
|
|
11 |
RF 100A |
Φ159×Φ115×3t
|
FF 100A |
Φ210×Φ115×3t
|
|
12 |
RF 125A |
Φ190×Φ141×3t
|
FF 125A |
Φ250×Φ141×3t
|
|
13 |
RF 150A |
Φ220×Φ167×3t
|
FF 150A |
Φ280×Φ167×3t
|
|
14 |
RF 200A |
Φ270×Φ218×3t
|
FF 175A |
Φ305×Φ192×3t
|
|
15 |
RF 225A |
Φ290×Φ244×3t
|
FF 200A |
Φ330×Φ218×3t
|
|
16 |
RF 250A |
Φ333×Φ270×3t
|
FF 250A |
Φ400×Φ270×3t
|
|
17 |
RF 300A |
Φ378×Φ321×3t
|
FF 300A |
Φ445×Φ321×3t
|
|
18 |
RF 350A |
Φ423×Φ359×3t
|
FF 350A |
Φ490×Φ359×3t
|
|
19 |
RF 400A |
Φ486×Φ410×3t
|
FF 400A |
Φ560×Φ410×3t
|
|
20 |
RF 450A |
Φ541×Φ460×3t
|
FF 450A |
Φ620×Φ460×3t
|
|
21 |
RF 500A |
Φ596×Φ513×3t
|
FF 500A |
Φ675×Φ513×3t
|
|
22 |
RF 600A |
Φ700×Φ615×3t
|
FF 550A |
Φ745×Φ564×3t
|
|
|
|
|
|
Warning: Gasket materials should
never be recommended when both the
temperature and the pressure are at
the maximums listed. Properties and
applications shown are typical. No
application should be undertaken by
anyone without independent study and
evaluation for suitability. Never
use more than one gasket in one
flange joint, and never reuse a
gasket. Improper use or gasket
selection could cause property
damage and/or serious personal
injury. The data reported is a
compilation of field testing, field
service reports and/or in-house
testing. While the utmost care has
gone into publishing the information
contained herein, we assume no
responsibility for errors. The
information and specifications
contained in this website are
subject to change without notice.
This revision cancels and obsoletes
all previous editions.
