PTFE
Tube
Item No.:ZD-GS1601

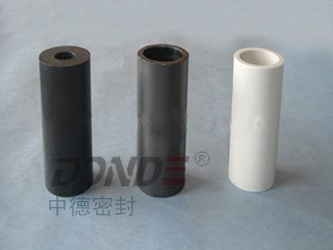

Description:There are three styles of PTFE rod:Pressed PTFE tube,extruded
PTFE tube,die-formed
PTFE tue. PTFE rods are made
by high molecular compound of teflon.
Modified PTFE
TubeZD-GS1601MZD-GS1601M contain some fibreglass,graphite,bronze to improve the character of pure
PTFE.
Main Specification
|
Properties |
Unit |
Result |
|
Apparent
Density |
gcm
3 |
2.10~2.30 |
|
Tensile
Strength(min) |
MPa |
18 |
|
Crack
Elongation(min) |
% |
230 |
|
Dielectric
Strength(min) |
Kv/mm |
10 |
Size of PTFE Tube:
|
Types |
Size |
|
Diameter(mm) |
Thickness(mm) |
Length(mm) |
|
Pressed Pipe |
1~25 |
0.1~2.5 |
as request |
|
Extruded Pipe |
25~200 |
1.5~8 |
as request |
|
Die Pressed Pipe |
25~1800 |
5~500 |
100~300 |
|
Specifications |
outside diameter (mm)
|
wall thickness (mm)
|
Length (mm) min |
|
Nominal |
Tolerance |
Nominal |
Tolerance |
|
24〜2
25〜2
29〜2
29.6〜2 |
24
25
29
29.6 |
\0.65 |
2 |
\0.30 |
4000 |
|
32〜2
32〜3.5
40〜2
40〜4
50〜4
50〜5 |
32
32
40
40
50
50 |
\0.80 |
|
3.5 |
\038 |
|
2 |
\0.30 |
|
4 |
\0.38 |
|
5 |
|
51〜2
52〜4
64〜2.5
64〜4.5
81〜2.5
82〜2.5
82〜3 |
51
52
64
64
81
82
82 |
\0.95 |
2 |
\0.30 |
|
4
2.5
4.5
2.5
2.5
3 |
\0.38 |
|
90〜3
90〜5
104〜3 |
90
90
104 |
\1.10 |
3
5
3 |
\0.30 |
|
129〜3.5
154〜4
204〜4 |
129
154
204 |
\1.20 |
3.5
4
4 |
\0.35 |
