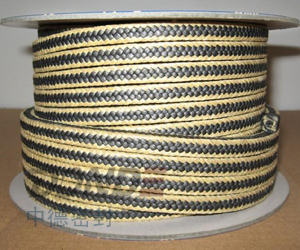

Carbon
Fibre Packing Aramide Corner
Item No.:ZD-P1312
Description:Carbon
fiber packing aramid corners is braided with high intensity acamid
fiber, highly complex thermal conductivity of carbon fiber, and it is
impregnated PTFE latex or other lubricant.Carbon fiber packing aramid
corners has many advantages,such as high strength,Carbon fiber packing
aramid corners also has effective thermal conductivity,low friction
coefficient and it particularly applicable to the sealing of high-expressure
and high-speed part.
Main Specification:
|
Temperature) |
-100℃~+260℃ |
|
Pressure) |
35MPa |
|
PH Range) |
2-13 |
|
Linear Speed) |
0-25M/S |
|
Size |
3*3mm-60*60mm（or as request） |
How to Order：
|
Item |
Order Code |
|
Carbonized Fibre Braided Packing |
ZD-P1300 |
|
Carbonized
Fibre Braided Packing With Graphite |
ZD-P1301 |
|
High Strength
Carbon Fibre Brainded Packing |
ZD-P1310 |
|
Carbon
Fibre Packing With Graphite Impregnated |
ZD-P1311 |
|
Carbon
Fibre Packing Aramide Corner |
ZD-P1312 |
|
PTFE Fibre Braided
Packing With Carbon Fiber Corner |
ZD-P1350 |
For more information,please contact with
us directly,thanks！
|
