		Metal Tape Shaper

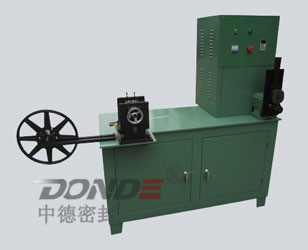

Metal Tape Shaper

Item No.:ZD-M60

Description:ZD-M60 Metal strip shaping machine is semi-automatic, flat strip is shaped to V or W profile by pressing roller which is controlled by variable frequency motor, it will stop automatically when shaping finish, so one worker can operate several machines.

production capacity: 400kg per day based on 4.5mm width strip

Configuration:

1.one set of shaping molds.

2.strip size available: 2.5mm,3.2mm,4.5mm,6.4mm,7.2mm in V or W-shaped.

Technical Parameter:

Strip Thickness	0.1 - 0.3mm
Strip Width	2.5,3.2,4.5,6.4,7.2
Linear Speed	0 – 12m/s
Total Power	1.5 KW
Motor Power	0.75 KW
Voltage	380V/220V
Variable Frequency Controller	2.2G
Dimension	18008201600mm
Weight	300 KG
